Concept of motion in a plane

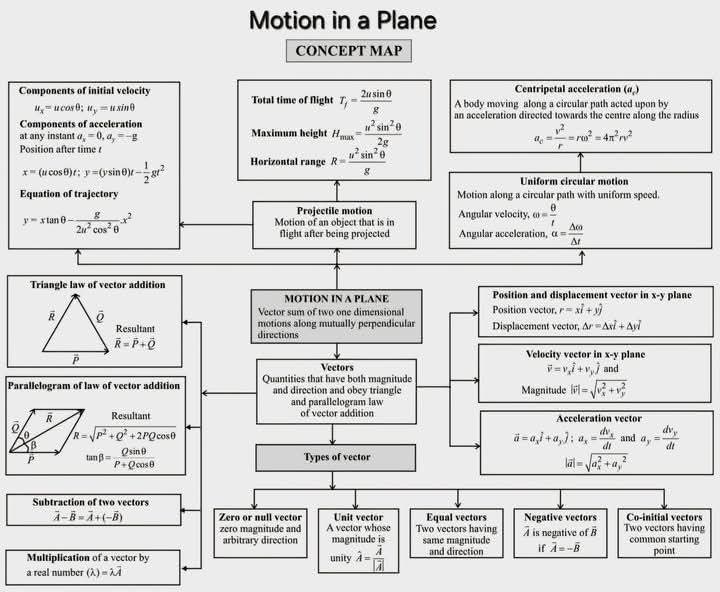

아래 이미지는 평면에서의 운동에 대한 개념 지도입니다. 평면 운동의 다양한 측면, 특히 벡터의 개념, 사영 운동, 그리고 원운동을 다루고 있습니다. 수식과 그림을 사용하여 각 개념을 설명하고, 개념들 간의 관계를 시각적으로 보여줍니다.
핵심 개념:
- 벡터: 크기와 방향을 모두 가지는 물리량. 삼각형 법칙과 평행사변형 법칙을 이용하여 벡터를 더하거나 뺄 수 있습니다. 영벡터, 단위 벡터, 등벡터, 반대 벡터, 동시점 벡터 등 다양한 종류의 벡터가 있습니다.
- 벡터의 덧셈과 뺄셈: 삼각형 법칙과 평행사변형 법칙을 이용하여 벡터를 더하거나 뺄 수 있습니다.
- 벡터의 스칼라 배: 벡터에 스칼라 값을 곱하면 벡터의 크기만 변하고 방향은 변하지 않습니다.
- 평면 운동: 두 개의 서로 수직인 방향으로의 운동의 벡터 합으로 나타낼 수 있습니다.
- 사영 운동 (포물선 운동): 수평 방향과 수직 방향으로의 운동으로 분해하여 분석할 수 있는 운동. 최대 높이, 수평 도달 거리, 비행 시간 등을 계산하는 공식이 있습니다.
- 등속 원운동: 속력은 일정하지만 방향이 계속 변하는 운동. 각속도와 구심 가속도의 개념이 중요합니다.
- 구심 가속도: 등속 원운동을 하는 물체에 작용하는 가속도. 원의 중심 방향으로 향합니다.
이미지의 구조:
이미지는 평면 운동의 다양한 개념들을 상호 연결된 블록으로 표현하여, 각 개념 간의 관계를 시각적으로 보여줍니다. 각 블록에는 개념의 정의, 관련된 수식, 그림 등이 포함되어 있습니다. 이를 통해 평면 운동에 대한 포괄적인 이해를 도울 수 있도록 설계되었습니다.
결론:
이 이미지는 평면 운동에 대한 체계적인 개념 지도로, 학습 및 참고 자료로 유용합니다. 각 개념에 대한 상세한 설명과 함께 관련된 수식과 그림을 포함하고 있어, 평면 운동에 대한 전반적인 이해를 높이는 데 도움이 될 것입니다. 특히 벡터의 개념과 사영 운동, 원운동의 이해에 도움이 됩니다.

This image is a concept map illustrating motion in a plane. It covers various aspects of planar motion, focusing on vector concepts, projectile motion, and circular motion. Formulas and diagrams are used to explain each concept, visually demonstrating the relationships between them.
Key Concepts:
- Vectors: Physical quantities possessing both magnitude and direction. Vectors can be added or subtracted using the triangle law and parallelogram law of vector addition. Different types of vectors are shown: zero or null vector, unit vector, equal vectors, negative vectors, and co-initial vectors.
- Vector Addition and Subtraction: Methods for combining or finding the difference between vectors using the triangle law and parallelogram law.
- Scalar Multiplication of a Vector: Multiplying a vector by a scalar changes only its magnitude, not its direction.
- Motion in a Plane: Can be resolved into the vector sum of two one-dimensional motions along mutually perpendicular directions.
- Projectile Motion: Motion of an object projected into the air. It can be analyzed by resolving it into horizontal and vertical components. Formulas for maximum height, horizontal range, and time of flight are provided.
- Uniform Circular Motion: Motion along a circular path with constant speed. Concepts of angular velocity and centripetal acceleration are crucial.
- Centripetal Acceleration: The acceleration experienced by an object in uniform circular motion, directed towards the center of the circle.
Structure of the Image:
The image presents various concepts of planar motion as interconnected blocks, visually representing their relationships. Each block contains definitions, relevant formulas, and diagrams, facilitating a comprehensive understanding of planar motion.
Conclusion:
This image serves as a structured concept map for planar motion, useful as a learning and reference tool. It provides detailed explanations of each concept, including relevant formulas and diagrams, enhancing a thorough understanding of planar motion, particularly concerning vector concepts, projectile motion, and circular motion.
